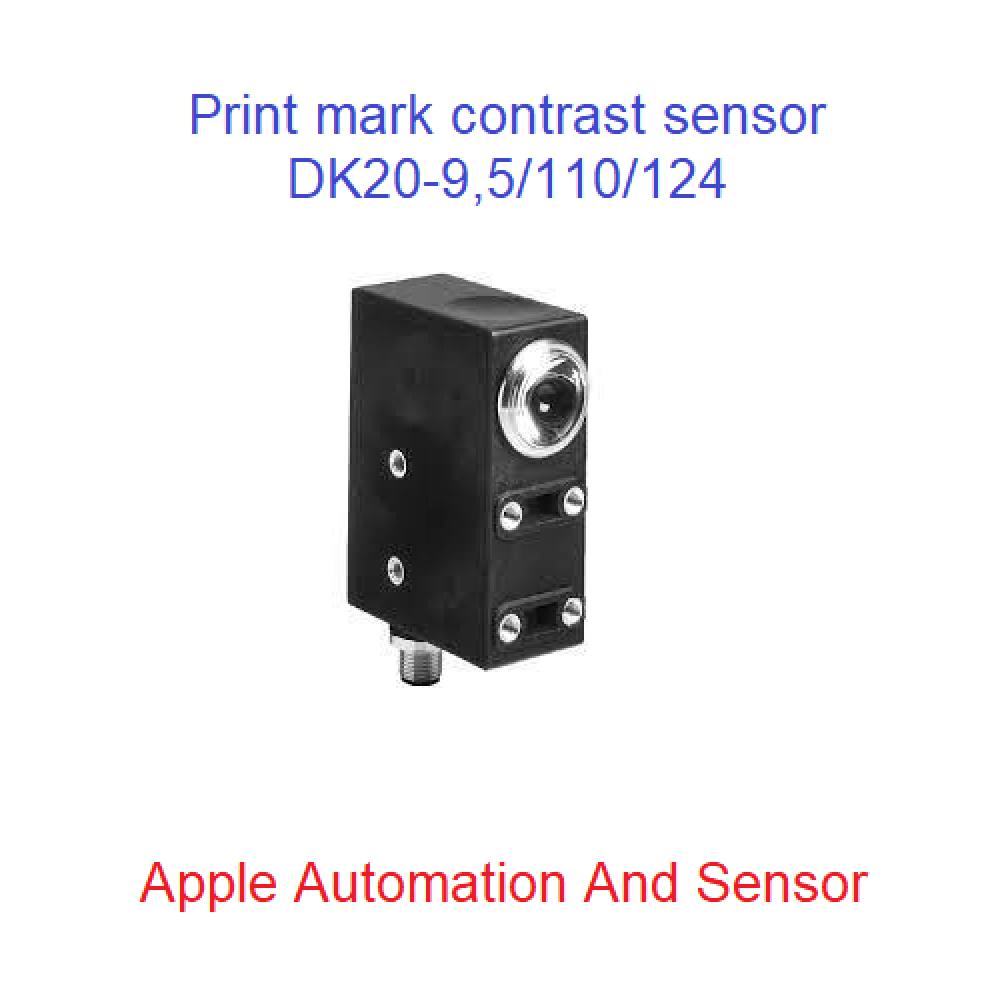

  • Pepperl Fuchs Print Mark Sensor DK20-9,5/110/124

DK20-9,5/110/124 Pepperl Fuchs Print Mark Sensor  - Supplier in India

Apple Automation And Sensor is Dealer, and Suppliers of Pepperl Fuchs Print Mark Sensor DK20-9,5/110/124, Pepperl Fuchs Inductive Proximity Sensors, Pepperl Fuchs Photoelectric Sensor, Pepperl Fuchs Thru-Beam Sensors, Pepperl Fuchs Retro Reflective Sensors, Pepperl Fuchs Diffuse Mode Sensors, Pepperl Fuchs Proximity Sensors, Pepperl Fuchsultrasonic Sensors, Pepperl Fuchs Rotary Encoders, Pepperl Fuchs Contrast Sensors, Pepperl Fuchs Fiber Optic Sensors, Pepperl Fuchs Capacitive Sensors, Pepperl Fuchs Intrinsic Safety Barriers, Pepperl Fuchs Isolated Barriers, Pepperl Fuchs Zener Barriers, Pepperl Fuchs Signal Conditioners, Pepperl Fuchs Switch Amplifiers, Pepperl Fuchs Frequency Converter, Pepperl Fuchs Solenoid Drivers, Pepperl Fuchs Relay Modules, Pepperl Fuchs Transmitter Power Supplies, Pepperl Fuchs Repeaters, Pepperl Fuchs Signal Converters, Pepperl Fuchs Trip Amplifiers, Pepperl Fuchs Current Drivers  in India. Buy Pepperl Fuchs Print Mark Sensor online in India at wholesale price. We assure you our best rate and prompt delivery. Pepperl Fuchs Print Mark Sensor Sensor range, Light source, Light type, Light spot representation, Angle deviation, Continuous light, Teach-In, Functional safety related parameters, MTTFd, Diagnostic Coverage (DC), Function indicator, Control elements, Electrical specifications, Operating voltage, Ripple, No-load supply current, Input, Function input, Output, Switching type, Signal output, Switching voltage, Switching current, Switching frequency, Response time, Conformity, Product standard, Compliance with standards and directives, Standard conformity, Shock and impact resistance, Vibration resistance, Approvals and certificates, UL approval, CCC approval, Ambient conditions, Ambient temperature, Storage temperature, Mechanical specifications, Housing width, Housing height, Housing depth, Degree of protection, Connection, Material, Housing, Optical face, Mass, Datasheet, Catalogue, Pdf at Best Price. We normally stock Pepperl Fuchs Print Mark Sensor DK20-9,5/110/124.

Technical Data
Sensor range 9.5 mm ± 3 mm
Light source
LED
Light type Visible green/red/blue, modulated light
Light spot representation 1 mm x 4 mm
Angle deviation Max. ± 3°
Continuous light 7000 Lux
Teach-In static Teach-In
Functional safety related parameters
MTTFd 650 a
Diagnostic Coverage (DC) 0.00%
Function indicator LED yellow; switching operation: lights up if print mark is detected
Teach-In operation: flashing slowly
alarm display: flashing quickly, if no safe operation is possible
Control elements Teach-In key
Electrical specifications
Operating voltage UB 10 ... 30 V DC
Ripple 10.00%
No-load supply current I0 ≤ 70 mA
Input
Function input Teach-In input
Output
Switching type light/dark on switchable, results from the order of the Teach-In
Signal output Push-pull output, short-circuit protected, reverse polarity protected
Switching voltage PNP: ≥ (+UB -2.5 V) , NPN: ≤ 1.5 V
Switching current max. 200 mA
Switching frequency f 16.5 kHz
Response time 30 µs
Conformity
Product standard EN 60947-5-2
Compliance with standards and directives
Standard conformity
Shock and impact resistance IEC / EN 60068. half-sine, 40 g in each X, Y and Z directions
Vibration resistance IEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions
Approvals and certificates
UL approval cULus Listed , Class 2 power source
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature 20 ... 60 °C (-4 ... 140 °F)
Storage temperature -20 ... 75 °C (-4 ... 167 °F)
Mechanical specifications
Housing width 33 mm
Housing height 85.6 mm
Housing depth 60.8 mm
Degree of protection IP67
Connection 5-pin, M12 x 1 connector
Material
Housing PC (glass-fiber-reinforced Makrolon)
Optical face glass
Mass 200 g

Best Price of DK20-9,5/110/124 Pepperl Fuchs Print Mark Sensor
Apple Automation And Sensor one of the most trusted and recognized organization in the Sensor, Encoder, Counter, Timer, Linear Scale and Industrial automation Product Supplier. We provide high quality products. We are providing our services for since plenty of years. We deal with hundreds of Industry leading brands. Give us an opportunity to serve you. All the prices are negotiable, Feel free to Contact Us. We are Dealer, Supplier of Pepperl Fuchs Print Mark Sensor in India, Mumbai, Delhi, Ahmedabad, Chennai, Kolkata, Pune, Nashik, Aurangabad, Nagpur Vapi, Silvassa, Surat, Vadodara, Rajkot, Gandhidham, Morbi, Indore, Bhopal, Faridabad, Ghaziabad, Noida, Gurgaon, Coimbatore, Bangalore, Hyderabad, Kanpur, Goa, Vishakhapatnam, Cochin, Ernakulum, Ludhiana, Chandigarh, Baddi, Dehradun, China, Korea, Taiwan, Singapore, UAE, Dubai, Malaysia, Srilanka, Bangladesh, Sourth Africa.

Write a review

Please login or register to review

Pepperl Fuchs Print Mark Sensor DK20-9,5/110/124

  • ₹5,500.00
