  • Pepperl Fuchs Photoelectric Sensor OBT200-18GM60-E4

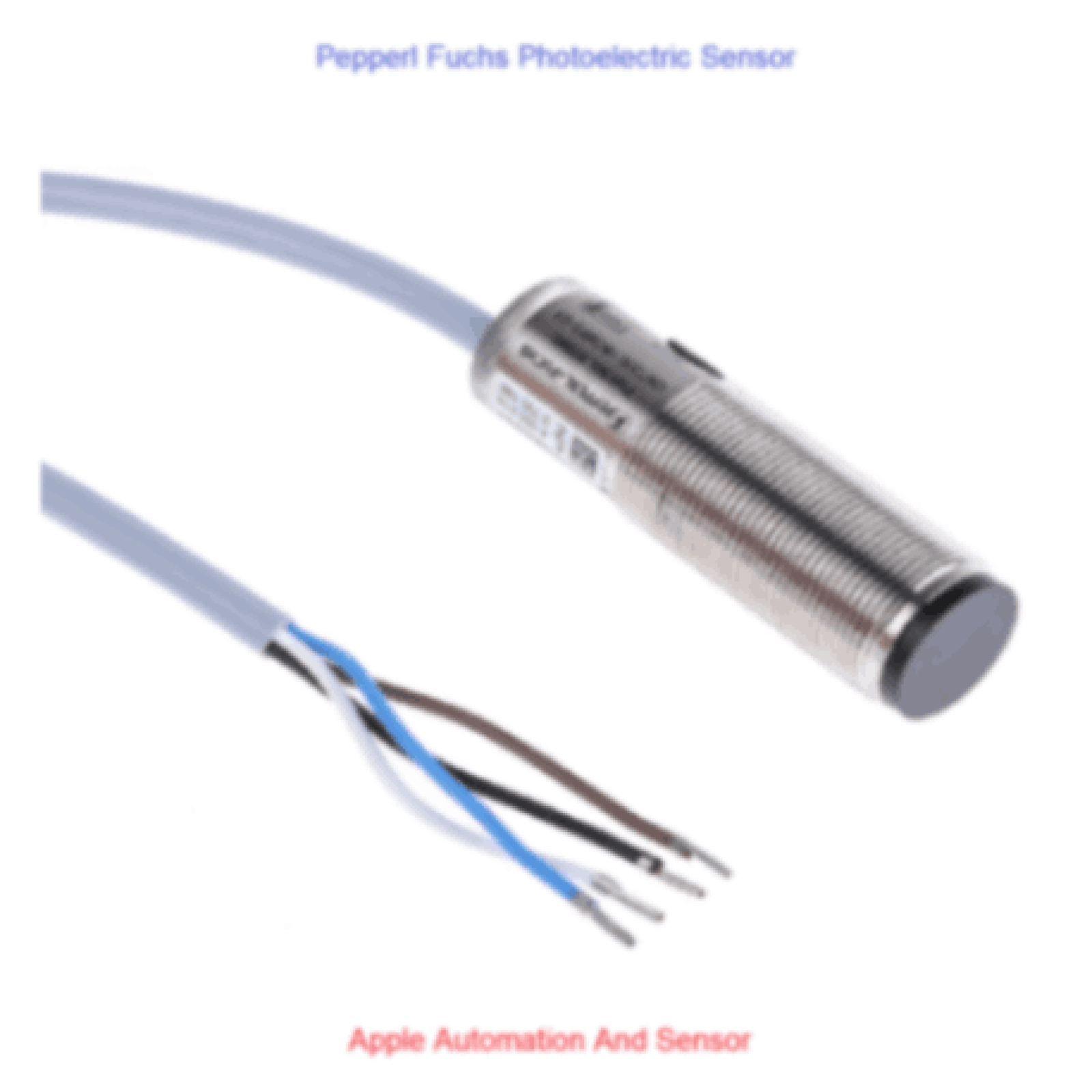

Pepperl Fuchs OBT200-18GM60-E4 Photoelectric Sensor - Supplier in India

Apple Automation And Sensor is Dealer, and Suppliers of Pepperl Fuchs Photoelectric Sensor OBT200-18GM60-E4, Pepperl Fuchs Inductive Proximity Sensors, Pepperl Fuchs Photoelectric Sensor, Pepperl Fuchs Thru-Beam Sensors, Pepperl Fuchs Retro Reflective Sensors, Pepperl Fuchs Diffuse Mode Sensors, Pepperl Fuchs Proximity Sensors, Pepperl Fuchsultrasonic Sensors, Pepperl Fuchs Rotary Encoders, Pepperl Fuchs Contrast Sensors, Pepperl Fuchs Fiber Optic Sensors, Pepperl Fuchs Capacitive Sensors, Pepperl Fuchs Intrinsic Safety Barriers, Pepperl Fuchs Isolated Barriers, Pepperl Fuchs Zener Barriers, Pepperl Fuchs Signal Conditioners, Pepperl Fuchs Switch Amplifiers, Pepperl Fuchs Frequency Converter, Pepperl Fuchs Solenoid Drivers, Pepperl Fuchs Relay Modules, Pepperl Fuchs Transmitter Power Supplies, Pepperl Fuchs Repeaters, Pepperl Fuchs Signal Converters, Pepperl Fuchs Trip Amplifiers, Pepperl Fuchs Current Drivers in India. Buy Pepperl Fuchs Print Mark Sensor online in India at wholesale price. We assure you our best rate and prompt delivery. Pepperl Fuchs Print Mark Sensor Sensor range, Light source, Light type, Light spot representation, Angle deviation, Continuous light, Teach-In, Functional safety related parameters, MTTFd, Diagnostic Coverage (DC), Function indicator, Control elements, Electrical specifications, Operating voltage, Ripple, No-load supply current, Input, Function input, Output, Switching type, Signal output, Switching voltage, Switching current, Switching frequency, Response time, Conformity, Product standard, Compliance with standards and directives, Standard conformity, Shock and impact resistance, Vibration resistance, Approvals and certificates, UL approval, CCC approval, Ambient conditions, Ambient temperature, Storage temperature, Mechanical specifications, Housing width, Housing height, Housing depth, Degree of protection, Connection, Material, Housing, Optical face, Mass, Datasheet, Catalogue, Pdf at Best Price. We normally stock Pepperl Fuchs Photoelectric Sensor OBT200-18GM60-E4.

Technical Data
General specifications
Detection range 0 ... 200 mm
Reference target standard white 200 mm x 200 mm
Light source IRED , 880 nm
Light type infrared
Diameter of the light spot approx. 40 mm at 200 mm
Ambient light limit 10000 Lux
Indicators/operating means
Operation indicator LED green
Function indicator Dual color-LED, yellow/green

yellow: switch state

green: power on

flashing: stability control
Control elements Sensing range adjuster
Electrical specifications
Operating voltage UB 10 ... 30 V DC , class 2
Ripple 10.00%
No-load supply current I0 ≤ 25 mA
Time delay before availability tv ≤ 25 ms
Output
Switching type light/dark on electrically switchable
Signal output 1 NPN output, short-circuit protected, reverse polarity protected, open collector
Switching voltage max. 30 V DC
Switching current max. 100 mA
Voltage drop Ud ≤ 2.5 V
Switching frequency f 500 Hz
Response time 1 ms
Conformity
Product standard EN 60947-5-2
Standard conformity
Standards 2 UL 508 UL 508
Approvals and certificates
UL approval cULus Listed, Type 1 enclosure
CCC approval CCC approval / marking not required for products rated ≤36 V
Approvals CE, cULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1

enclosure)
Ambient conditions
Ambient temperature -25 ... 55 °C (-13 ... 131 °F)
Storage temperature -40 ... 70 °C (-40 ... 158 °F)
Mechanical specifications
Degree of protection IP67
Connection 2 m fixed cable
Material
Housing brass, nickel-plated
Optical face PC
Mass

110 g


Best Price of Pepperl Fuchs OBT200-18GM60-E4 Photoelectric Sensor

Apple Automation And Sensor one of the most trusted and recognized organization in the Sensor, Encoder, Counter, Timer, Linear Scale and Industrial automation Product Supplier. We provide high quality products. We are providing our services for since plenty of years. We deal with hundreds of Industry leading brands. Give us an opportunity to serve you. All the prices are negotiable, Feel free to Contact Us. We are Dealer, Supplier of Pepperl Fuchs Print Mark Sensor in India, Mumbai, Delhi, Ahmedabad, Chennai, Kolkata, Pune, Nashik, Aurangabad, Nagpur Vapi, Silvassa, Surat, Vadodara, Rajkot, Gandhidham, Morbi, Indore, Bhopal, Faridabad, Ghaziabad, Noida, Gurgaon, Coimbatore, Bangalore, Hyderabad, Kanpur, Goa, Vishakhapatnam, Cochin, Ernakulum, Ludhiana, Chandigarh, Baddi, Dehradun, China, Korea, Taiwan, Singapore, UAE, Dubai, Malaysia, Srilanka, Bangladesh, Sourth Africa.

Write a review

Please login or register to review

Pepperl Fuchs Photoelectric Sensor OBT200-18GM60-E4

  • ₹2,000.00


0 reviews / Write a review

Tags: Pepperl Fuchs Photoelectric Sensor
